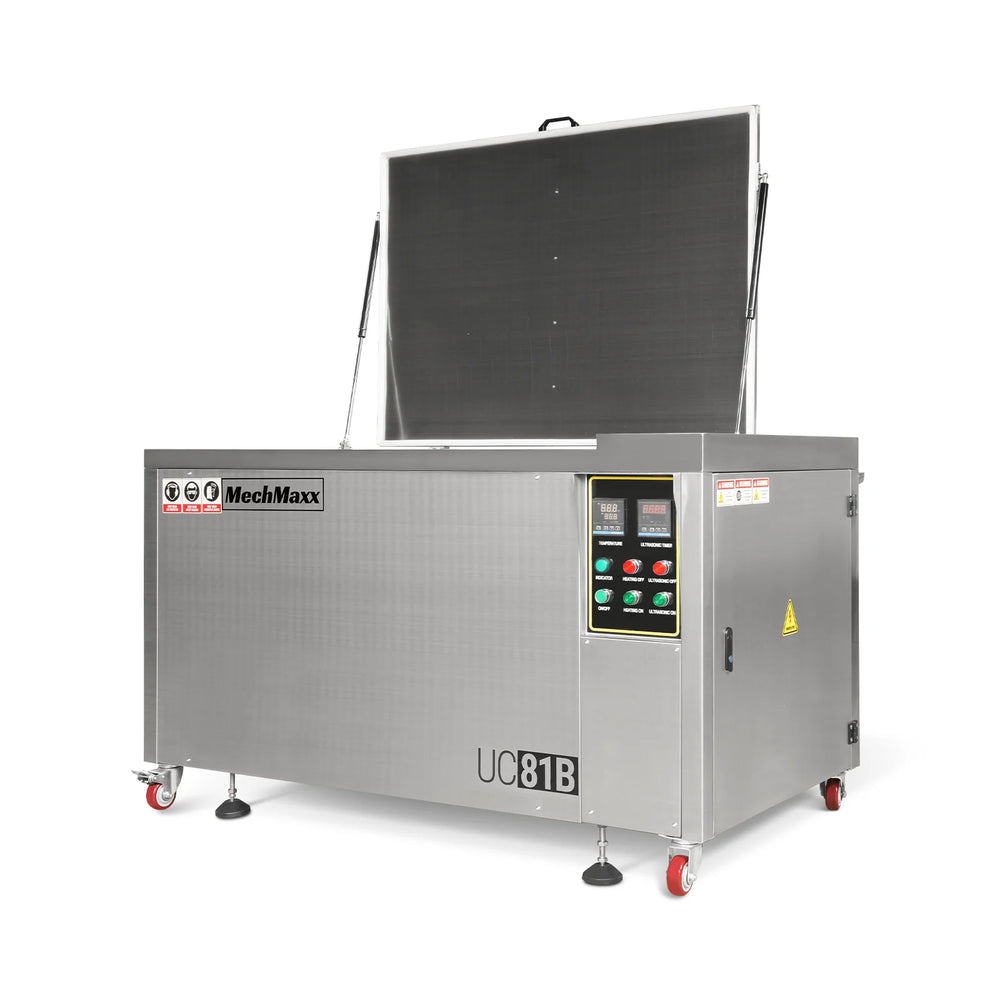

81 Gal / 308L Heavy Duty Industrial Ultrasonic Parts Washer, 28kHz 40 Transducers, SS304 Tank, 10kW Heater, 208–240V 3 Phase Power

SKU 320004

$3,499.00

Free shipping across the United States. Taxes calculated at checkout.

In stock

Not sure this is the right specification? Call +1 615-414-0001 · Monday to Friday, 8:00am - 5:00pm CT

Free US shipping No shipping or handling fees added at checkout.

Spec support Call before you order and we confirm the right model.

Returns See our refund policy for timelines and conditions.

Secure payment Encrypted checkout processed by Shopify.

Description

Model	UC81B
Voltage	208–240V AC, 60Hz, 3-Phase (3P + Ground)
Recommended Wire	AWG 10 Cu
Ultrasonic power	1.8KW / 2.5HP
Heating power	10KW / 13.4HP
Temperature Control Range	Ambiance149℉
Ultrasonic Frequency	28kHz
Transducer QTY	40 Pcs (industrial-grade)
Machine Size（L×W×H）	57.5×40.3×34.2 in
Tank Size（L×W×H）	39.4×21.7×22 in
Big Basket Size（L×W×H）	36.2×20×16.5 in
Weight Capacity ( Big Basket )	264 lbs( 120 kg)
Small Basket Size（L×W×H）	14.4×8.1×8.6 in
Weight Capacity ( Small Basket )	22 lbs ( 10kg )
Tank Volume	81 GAL / 308 L
Tank material & Thickness	SUS304 / 2.0mm
Outer Panel Material & Thickness	SUS201 / 1.0mm
Packing Size（L×W×H）	63×41.3×41.3 in
N.W./ G.W	529 / 717LBS

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
