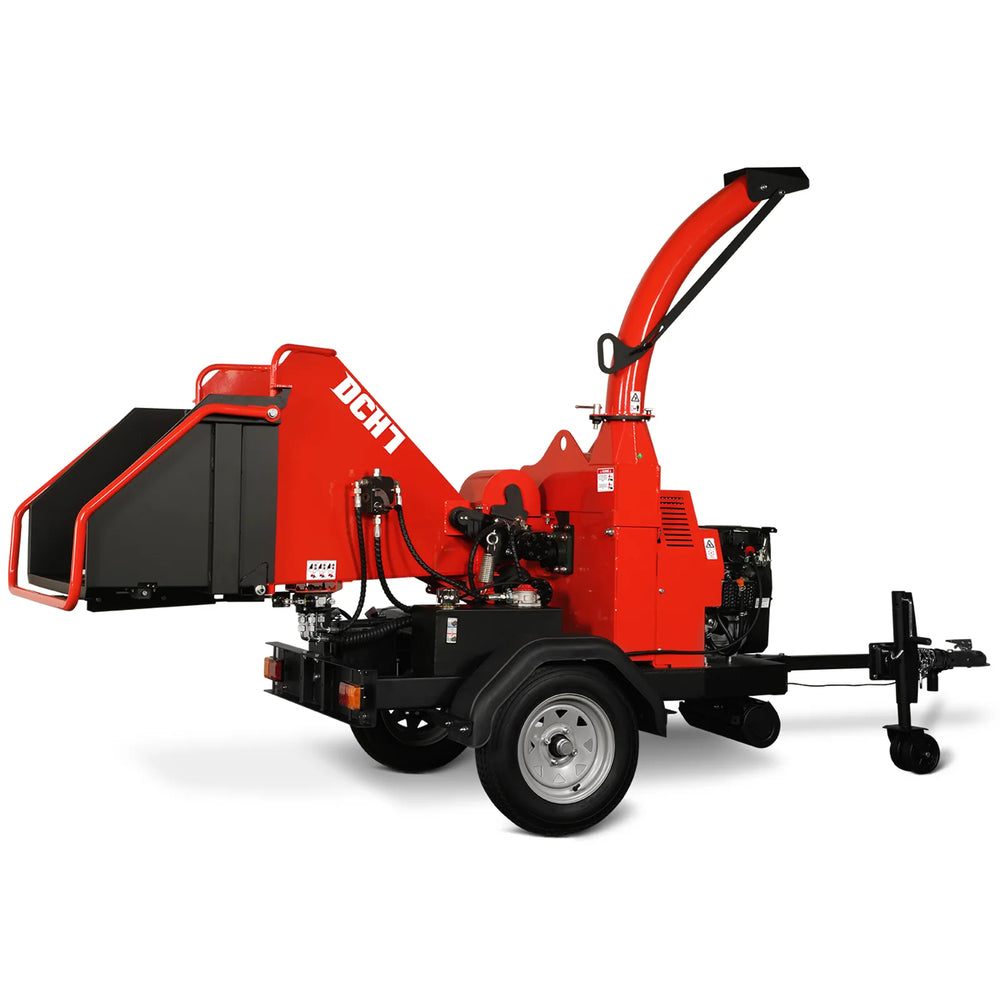

25hp 750cc Twin Cylinder ZONSEN Petrol Engine 7" Hydraulic Feeding Wood Chipper, DCH7
SKU 110700
Shipping calculated at checkout.
Not sure this is the right specification? Call +1 615-414-0001 · Monday to Friday, 8:00am - 5:00pm CT
Description
| Engine | ZONSEN GB750 | Blade | 2 x 8 in Blades; 2 x 6 in Anvil |
| Engine Type | Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling | Blade Material | A8 （5Cr8MoVSi） |
| Displacement | 750 cc; 25 HP | Blades Type | Double Edge Blade |
| Rated Power | 15.5 kw / 3600 RPM | Flywheel System | Open Top Flywheel 26 in x 1 in Twin |
| Max. Net Torque | 45 N·m / 2800 RPM | Discharge Chute | 360 Degree Rotating |
| Fuel Capacity | 3.17 gal | Emergency Stop | Stop Bar |
| Recommended Oil | SAE 10W-30 Classification SE or Higher | Towing Length | Tow Bar With 2 in Coupler |
| Hydraulic Tank | 6.87 gal | Wheel | 5.3-12 Tubeless |
| Starting | Electric Starting | Wheelbase | 52.5 in |
| Battery | 36Ah 12V Lead-Acid Battery | Axle | Damping Torsion Axle |
| Ignition System | CDI | Max. Speed | 50 mph |
| Governor System | Mechanical Centrifugal Type | Chassis | Channel Steel Welded Frame |
| Belt | 2 x V-Belts | Package Method | Iron Fram With Black Film |
| Belts Material | Kevlar | Weight (N.W./G.W.) | 1389 / 1587 lbs |
| Clutch | Centrifugal Clutch | Product Size (L*W*H) | 137 x 55 x 90 in |
| Cutting Method | Disc | Packing Size (L*W*H) | 87 x 46 x 51 in |
| Max. Chipping Dia. | 7 in | Machine Warranty | 2 Years |
| Feed Roller | 7.5 in x 6.5 in | Engine Warranty | 2 Years |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
